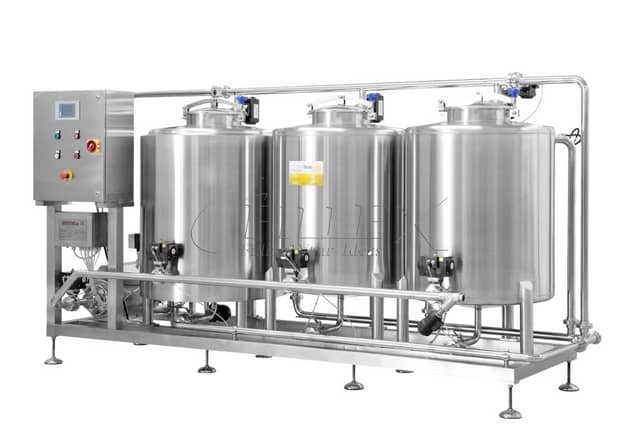

Cleaning In Place
Machines Details


   Specification Model:
CIP-0.5/CIP-1/CIP-2/CIP-3/CIP-4
  Acid Tank /L:
500/1000/2000/3000/4000
  Alkali Tank/L:
500/1000/2000/3000/4000
  Hot Water Tank/L:
500/1000/2000/3000/4000
  Heating Method:
Disc, plate, tube heating, steam heating
  Cip Pump:
10T/H, 20T/H, 30T/H
  Pump Head/ M:
24/36
  Pump Power/Kw:
2.2/5.5/7.5
1
The pneumatic diaphragm pump is used to suck concentrated acid and alkali, which reduces the operating cost.
2
The CIP cleaning system has single tank, double tank and multiple tanks for users to choose from, mobile and fixed.
3
The system can be divided into one to four according to production needs. Two-way and above two-way, it can not only clean the same or more than two areas at the same time, but also can clean while producing during the production process.
4
Fully automatic CIP, which can automatically detect and adjust the cleaning liquid, add liquid and discharge, display and adjust, its operation is reliable, the degree of automation is simple, the operation is simple, and the cleaning effect is good.
5
Automatically switch the process parameters, automatically adjust the cleaning time, PH, temperature and other parameters.
STRINGENT PRODUCTION
Stringent production flow makes high-quality equipments efficiently.
1. Inspection
2.Polishing
3.Baking Varnish
4.Electroplating
5.Assembling
6.Delivery
