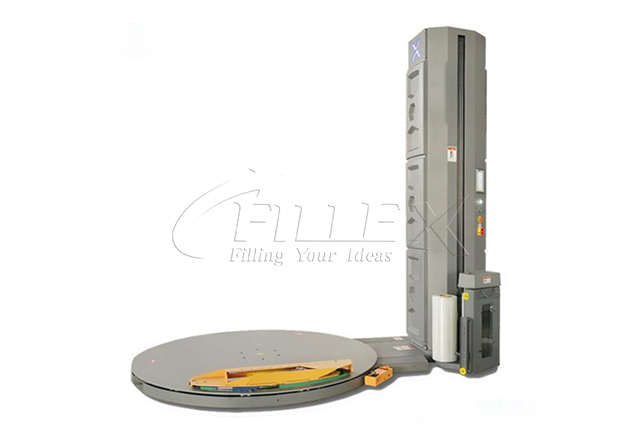

X100 Fully Automatic Pallet Wrapping Machine
Machines Details
   Maximum Wrapping Speed:
20-25 Loads/Hour
  Load Size Diagonal:
1753Mm
  Maximum Wrapping Height:
2400Mm
  Turntable Speed:
0-12Rpm(Adjustable)
  Film Cut And Clamp:
Automatic
  Intelli-Sensor:
Standard
  Standard Film Width:
500Mm
  Integrated Scale:
Optional
  Machine Size:
L:2800Mm W:1650Mm H:2745Mm
  Remote Control System:
Have
1
High efficiency and low electricity-consumption, convenient in operation.
2
The wrapping type and times can be designed on customers’ requirements.
3
Photoelectric sensor test pallet height automatic
4
Auto reset of turntable
5
Pre-stretch ratio: 300%
6
Programmable control and frequency converter is available.
7
PLC control, manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
