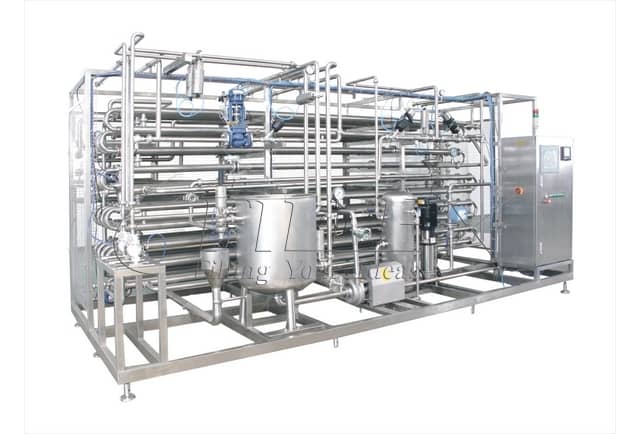

Tubular Sterilizer

Consulting Quotation

Machines Details

Technical Parameter

Capacity /T/H:

1/1.5/2/3/4/5/6/8/10

Steam Energy Consumption /Kg/H:

40/60/80/120/160/200/240/320/400

Steam Pressure /Bar:

6

Electric Power /Kw:

4.0/6.0/7.0/11.0

Dimensions /L*W*H:

3.3*1.6*1.8/3.5*1.8*2.0/
4.5*1.8*2.0/4.5*2.0*2.0/
4.5*2.0*2.2/6.5*2.0*2.2

Weight /Kg:

1960/2160/2420/2570/2940/3300/3700/4200

Material Pipe Diameter /Φ:

25/38/51

Steam Pipe Diameter /Φ:

DN25/DN32/DN40/DN50

Diameter Of Medium Pipe /Φ:

25/38/51

Model Specification:

HE-UHT-NN-1/HE-UHT-NN-1.5/HE-UHT-NN-2/HE-UHT-NN-3/HE-UHT-NN-4/HE-UHT-NN-5/HE-UHT-NN-6/HE-UHT-NN-8/HE-UHT-NN-10

Function & Features

1

Material and heating medium can be increased through non-contact exchange

2

Short sterilization time

3

The whole machine adopts food grade stainless steel material

4

This unit is composed of material balance and conveying system, plate heat exchange system, material piping system, hot water piping system, steam piping system, hot water heating system, material automatic return system, temperature automatic control and electrical control system, etc
