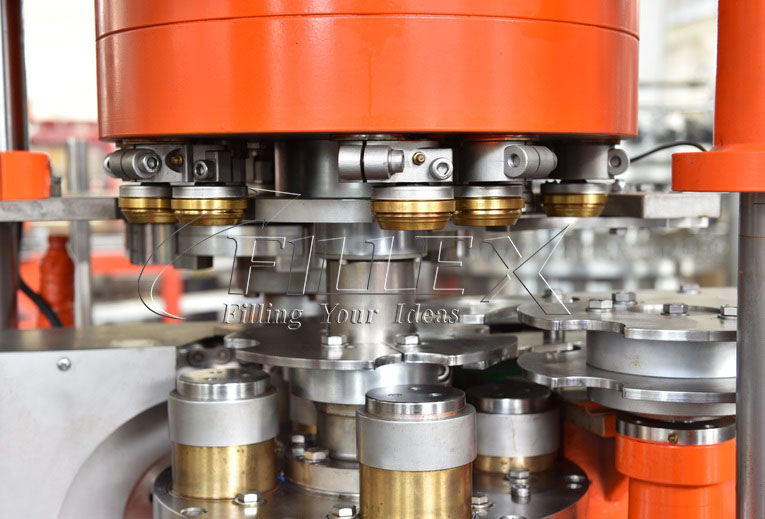

Automatic 6 Heads Can Seamer
Machines Details
   Product Name:
High-speed sealing machine
  Model:
BWFGJ400
  Number Of Cans:
6
  Production Capacity:
60~400 Cans/Min
  Applicable Tank Diameter:
Ф52.3~99 (105 for special specifications)
  Applicable Tank Height:
39~160Mm
  Power:
7.5Kw
  Weight:
2000Kg
  Dimensions:
1600X1200X1900Mm
1
The overall structure of the new machine series is more reasonable and beautiful than the old machine.
2
The diameter of the head of the new machine can sealer is significantly larger than the original one, and all heavy-duty bearings are installed. The life of the sealing cam is prolonged, and its normal service life is increased by more than 5 times.
3
The sealing shaft of the new machine adopts a dual-shaft structure with the first roller and the second roller separate, so that the feed of the sealing wheel can be adjusted and controlled separately, and the quality of the sealing will not be affected by the machining error or wear of the cam.
4
The direction of rotation of the new machine during sealing is counterclockwise, so that the direction of rotation of the can after the end of the can is automatically separated from the sealing machine, which can avoid jams and scratches on the can body.
STRINGENT PRODUCTION
Stringent production flow makes high-quality equipments efficiently.
1. Inspection
2.Polishing
3.Baking Varnish
4.Electroplating
5.Assembling
6.Delivery
