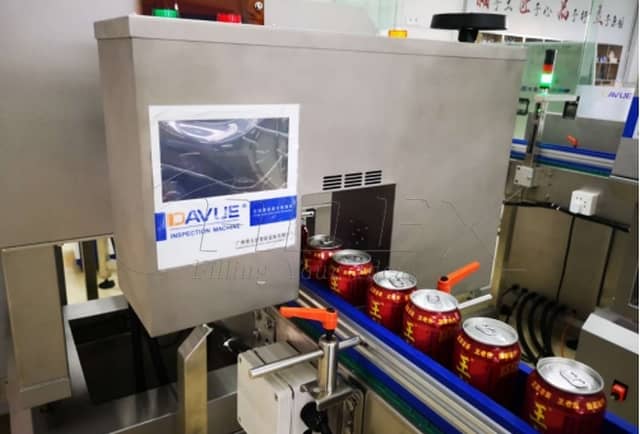

X-ray Liquid Level Detector
Machines Details
   Linear Speed Of Conveyor Belt:
≤1.5M/s
  Vessel Diameter:
40Mm~120Mm
  Dynamic Container Resolution:
士1Mm,土3.2MI/士1.5Mm,士4.8Ml
  Static Container Resolution:
+0.5Mm,土1.6MI/士1Mm,士3.2MI
  Rejection Rate Of Unqualified Containers:
≥98%
  Use Condition:
Ambient Temperature: 0°℃~40°℃,RelativeHumidity: <95%(40°C) , Power Supply: ~220V士20V,50Hz
  Temperature Error:
0C~40℃
  Size And Weight:
620x165x400Mm,40Kg
  Overall Power
≤150w
  Consumption:
1
Non-contact detection, fast detection speed and high precision.lt can work under the variable speed state of the assembly line conveyor belt, and is not limited by the speed stability of the conveyorbelt.
2
lt adopts stainless steel shell, and the host is designed and manufactured in a sealed manner, which is anti-fog, water-proof, andhas strong environmental adaptability.
3
Using the relative measurement method of idle sampling, the measurement resolution is not affected by temperature and long-timedrift.
4
Using single chip microcomputer, the instrument has strong anti-interference ability and high reliability.
5
Sound and light alarm at the same time, and automatically eliminateunqualified containers.
6
The instrument is equipped with inspection program and debuggingprogram, which has the ability to automatically check faults.
7
Large screen Chinese display,LED backlight LCD, clear and brighthandwriting, man-machine dialogue operation.
