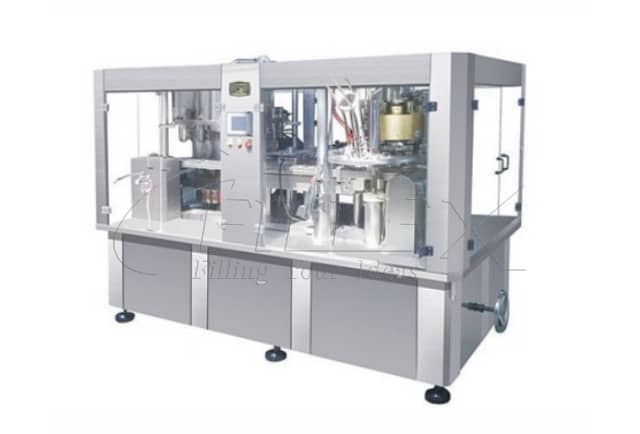

Can Sauce Filling Sealing Machine
Machines Details
   Model:
FC-12-4
  Capacity /CPH:
3000-9000
  Can Available:
Φ52.3-Φ99Mm H40-160Mm
  Power /Kw:
1.5Kw
  Overall Size:
2380X1450X2250Mm
1
The filling part of the equipment consists of a cylinder device, a filling valve, a valve controller, a sauce filling table, a plunger lifting cam, a gear, a sprocket, a worm gear transmission, and an empty tank conveying system.
2
The material cylinder part of the equipment consists of a pneumatic butterfly valve, aliquid level controller, a pressing device, a liquid level indicator, 12 sauce filling valves, etc.
3
The electrical part of this machine is composed of frequency variable speed governor, electromagnetic reversing valve, operating box, and jog cranking device.The whole machine is easy to operate and maintain
STRINGENT PRODUCTION
Stringent production flow makes high-quality equipments efficiently.
1. Inspection
2.Polishing
3.Baking Varnish
4.Electroplating
5.Assembling
6.Delivery
